Run Chaos experiments with Charmed Litmus¶

In this how-to guide we will conduct a simple Chaos Experiment simulating POD deletion to check if the System Under Test can recover from such fault. To achieve this, we will bootstrap Chaos Infrastructure onto a Kubernetes cluster, define a Resilience Probe and create and run the experiment.

Pre-requisites:¶

The Charmed Chaos Engineering platform deployed on your Kubernetes cluster (see the Getting started tutorial)
kubectl

1. Deploy System Under Test (SUT)¶

In this guide we will use the self-signed-certificates charm as a SUT.

Create a Juju model for the self-signed-certificates charm:

juju add-model certs

Deploy the charm:

juju deploy self-signed-certificates

Monitor the status of the deployment:

juju status --relations --watch 1s

The deployment is ready when the self-signed-certificates charm is in the active/idle state.

2. Bootstrap Chaos Infrastructure¶

In the Litmus Portal navigate to the Environments tab and click on the + New Environment button.

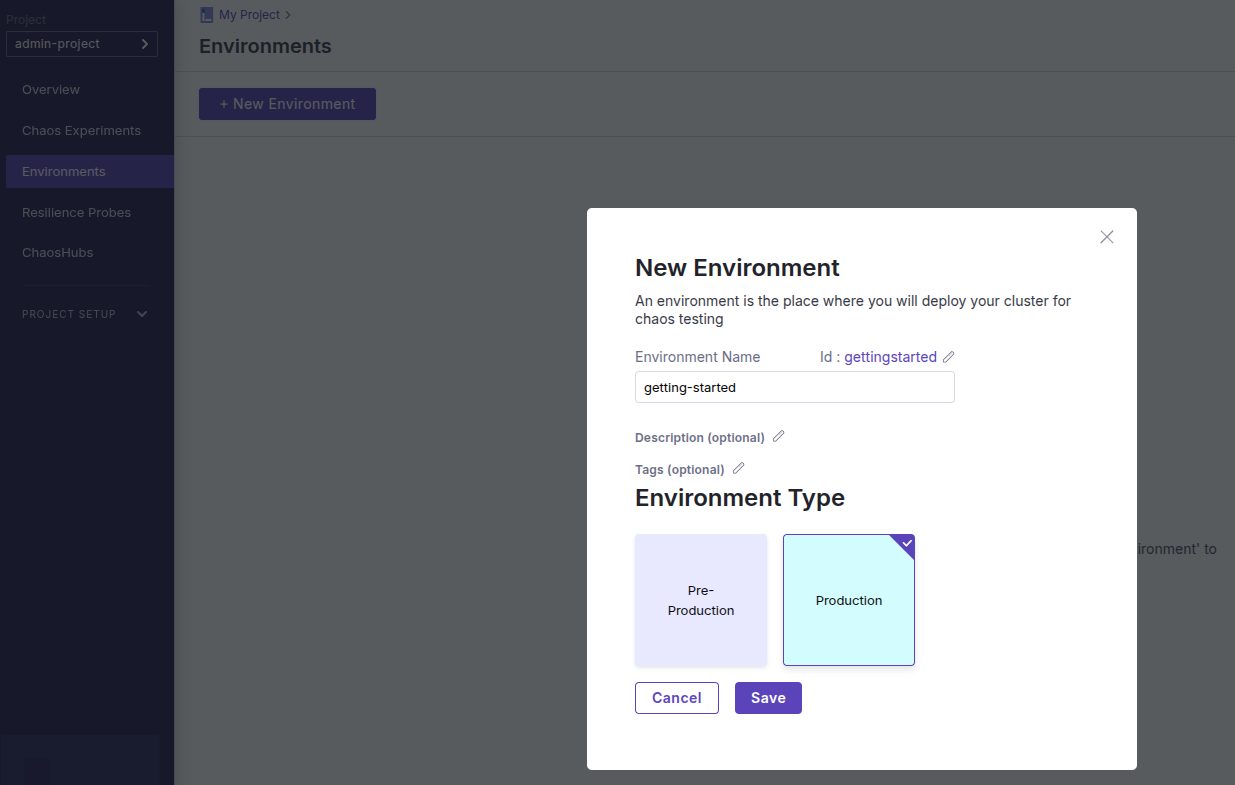

In the pop-up window fill in the name of the environment and select the environment type.

In this guide we will create an environment of type Production and we will call it getting-started:

Confirm your choices by clicking on the Save button.

To bootstrap a Chaos Infrastructure onto a Kubernetes cluster, select the newly created environment and then click on the + Enable Chaos button.

First, provide a name for the infrastructure. In this guide we will use self-signed-certificates-test:

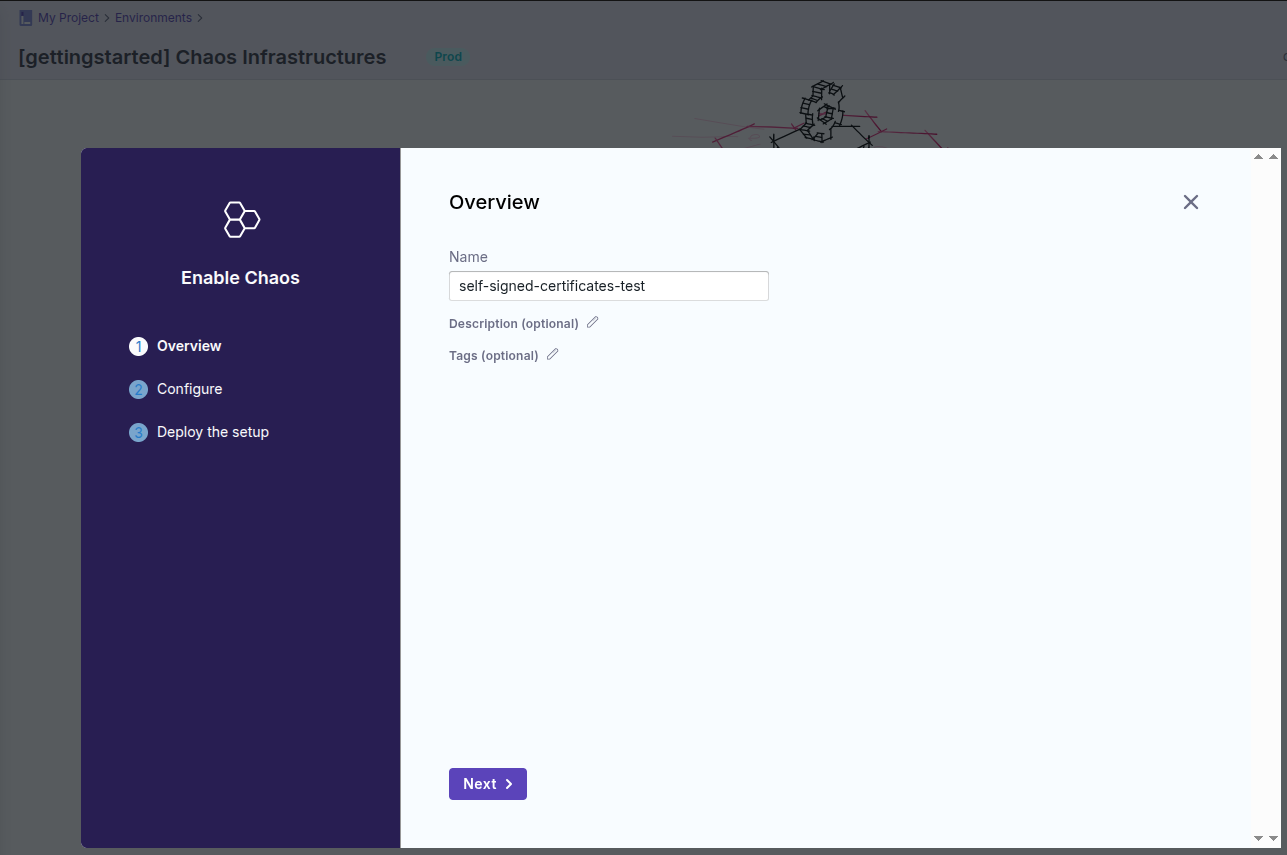

../../_images/bootstrap_infra_step_1.png

Next, choose the Infrastructure type, specify the Kubernetes namespace to deploy the Infrastructure to and define a Service Account responsible for managing the Infrastructure.

In this guide we will deploy the namespace-specific Chaos Infrastructure alongside the SUT (note the Installation Location being the same as the name of the Juju model we deployed self-signed-certificates to):

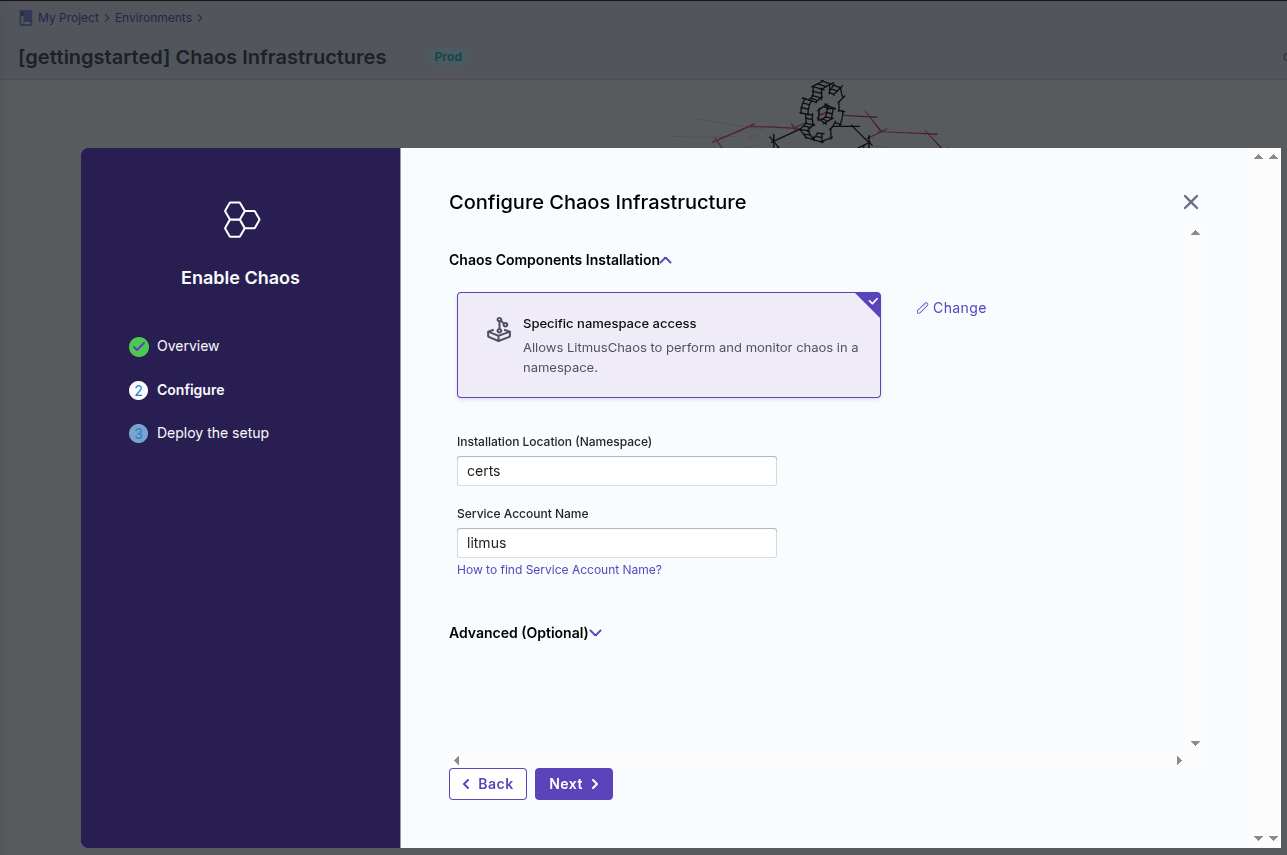

../../_images/bootstrap_infra_step_2.png

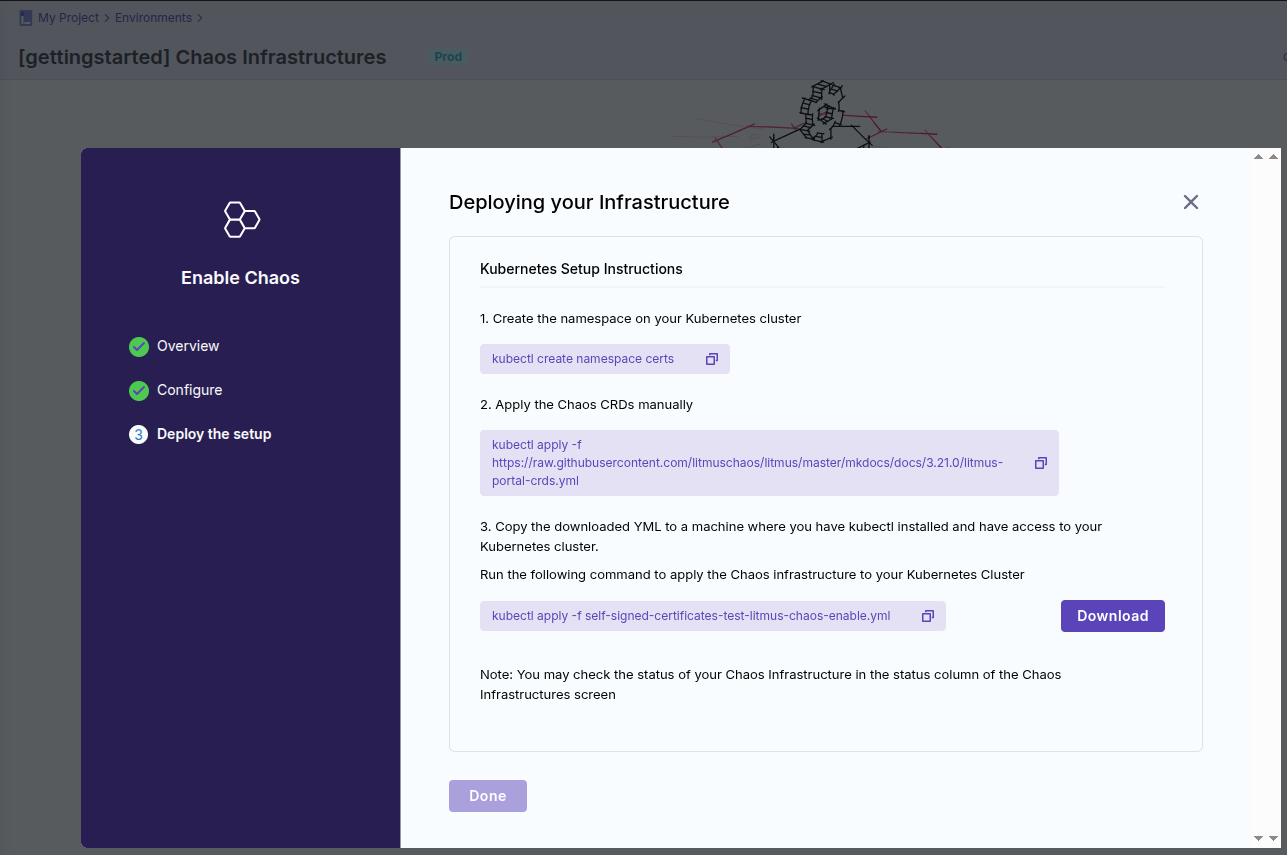

Last, follow the instructions from points 2 and 3 of the Kubernetes Setup Instructions :

../../_images/bootstrap_infra_step_3.png

After applying the manifests click the Done button.

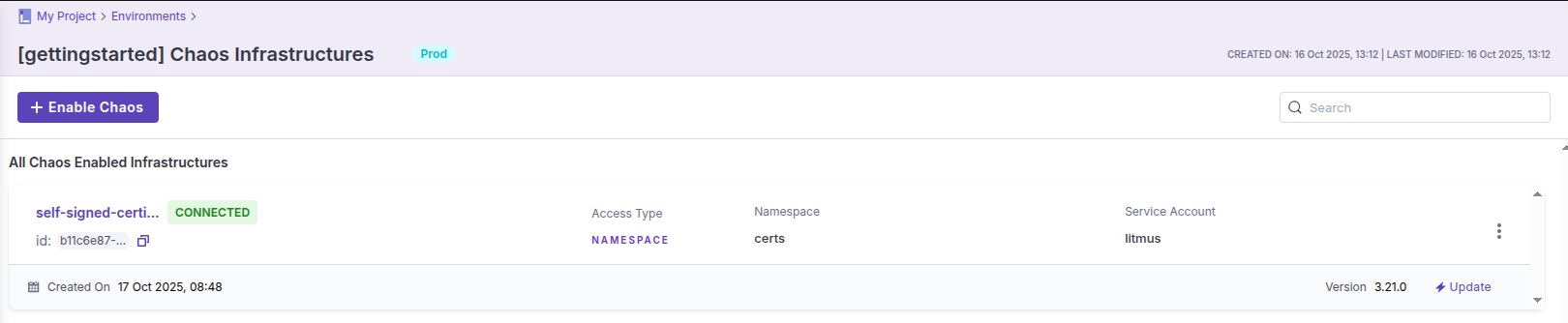

Deploying Chaos Infrastructure should take approximately 3-5 minutes. A successful deployment will be indicated by the Infrastructure status turned into CONNECTED:

../../_images/bootstrap_infra_success.png

3. Define a Resilience Probe¶

In the Litmus Portal navigate to the Resilience Probes menu and click the + New Probe button.
Select the probe of type Command and configure it using the values below:

Name: pod-up-probe
Timeout: 10s
Interval: 1s
Attempt: 1
Command: kubectl -n certs get pods | grep self-signed-certificates | grep Running | wc -l
Type: int
Comparison Criteria: >
Value: 0

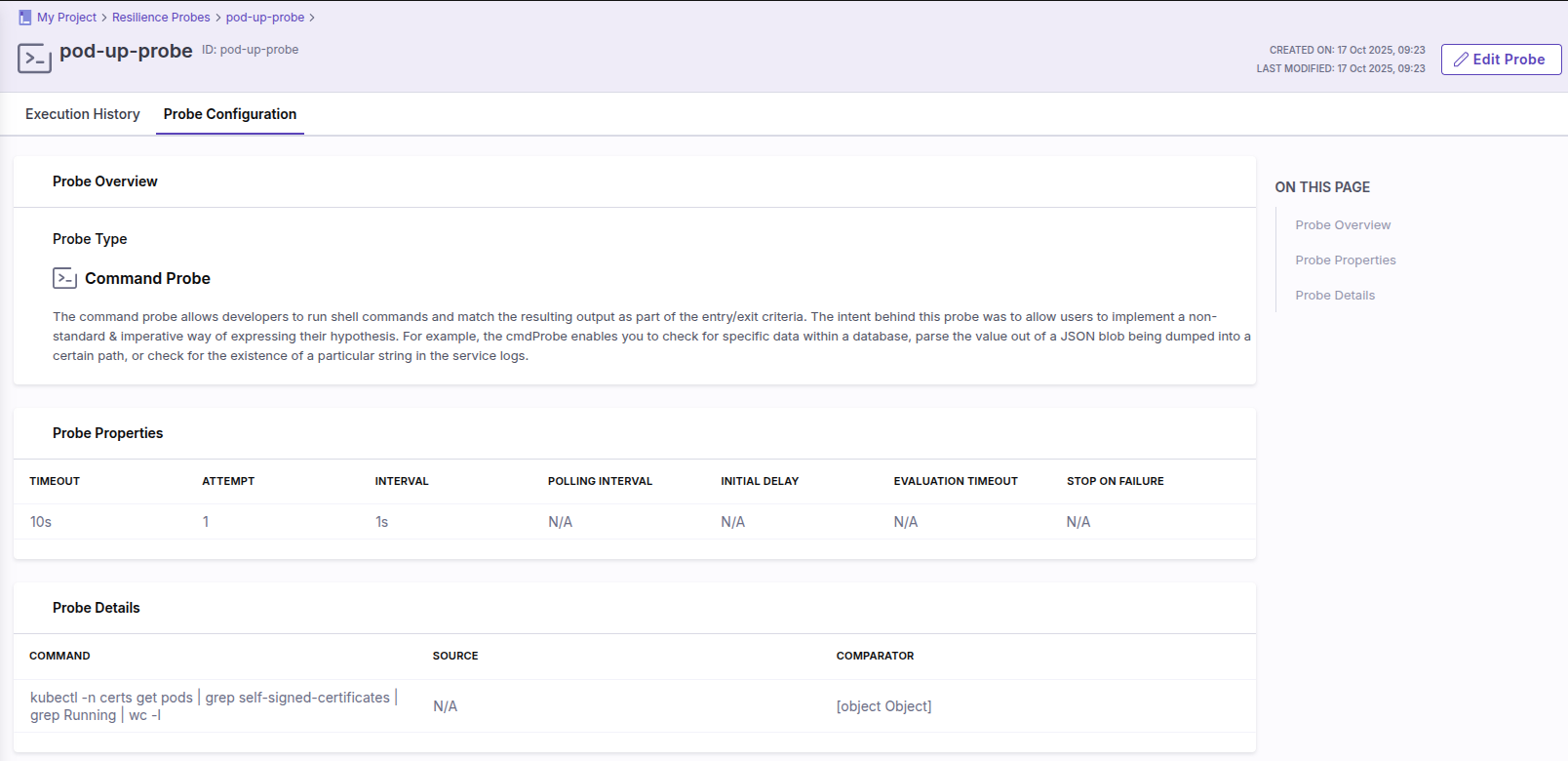

A correctly configured probe should look like so:

4. Create a Chaos Experiment¶

In the Litmus Portal navigate to the Chaos Experiments menu and click the + New Experiment button.

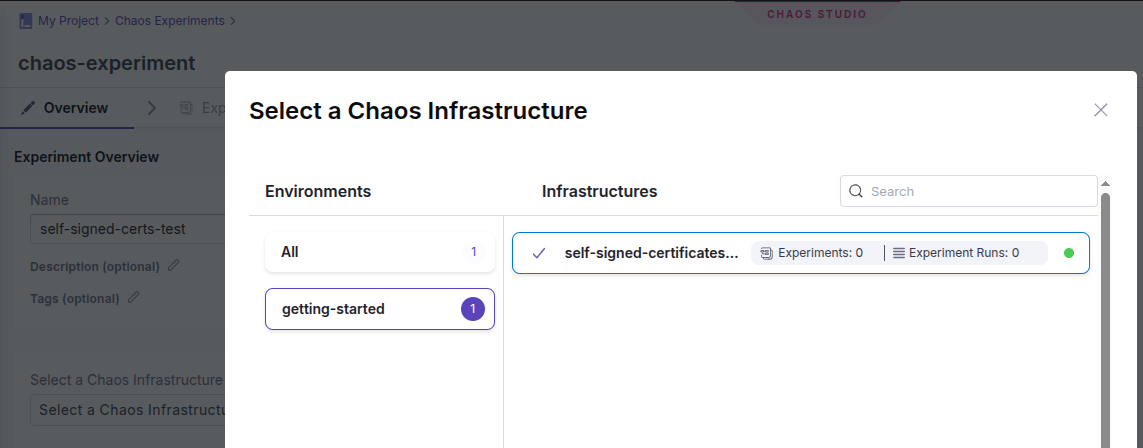

Name the test and select a Chaos Infrastructure to use:

Start off building an experiment using Blank Canvas.

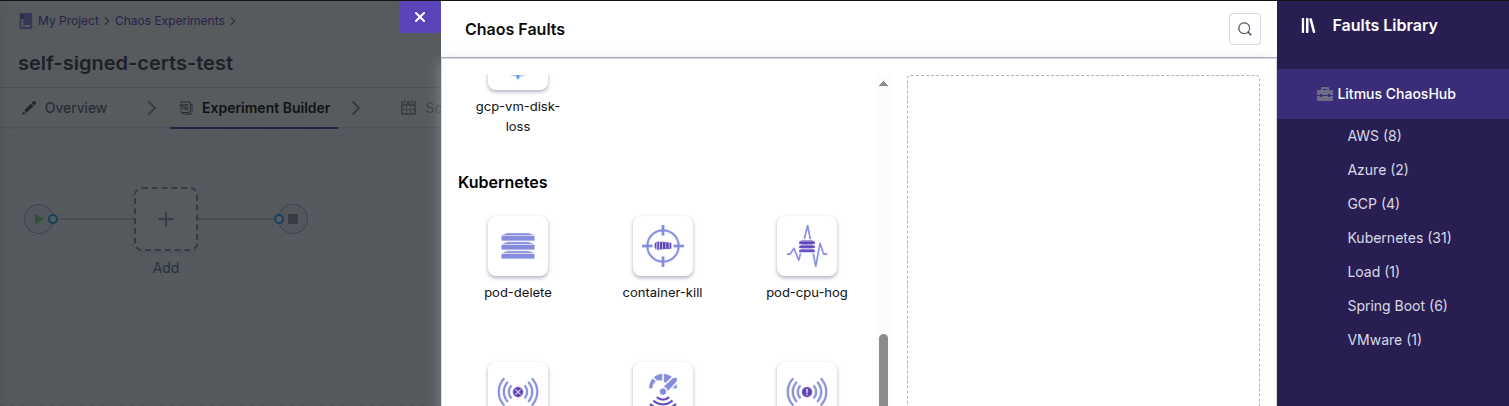

In the Experiment Builder click the Add button and add the pod-delete fault:

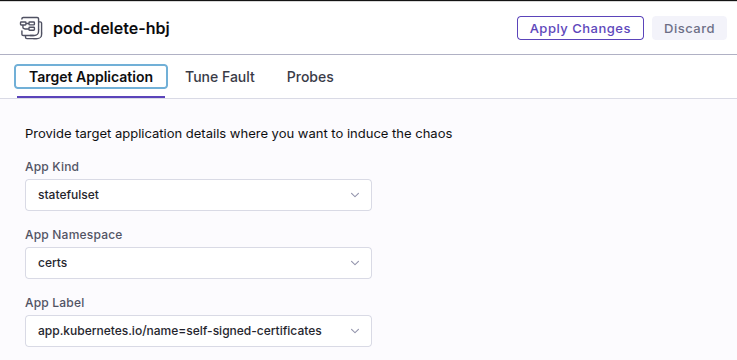

Configure the fault with the following values:

App Kind: statefulset
App Namespace: certs
App Label: app.kubernetes.io/name=self-signed-certificates

In the Probes tab select the previously created pod-up-probe and confirm your choice by clicking the Add to Fault button. Select the End of Test (EOT) probe execution mode and apply changes.

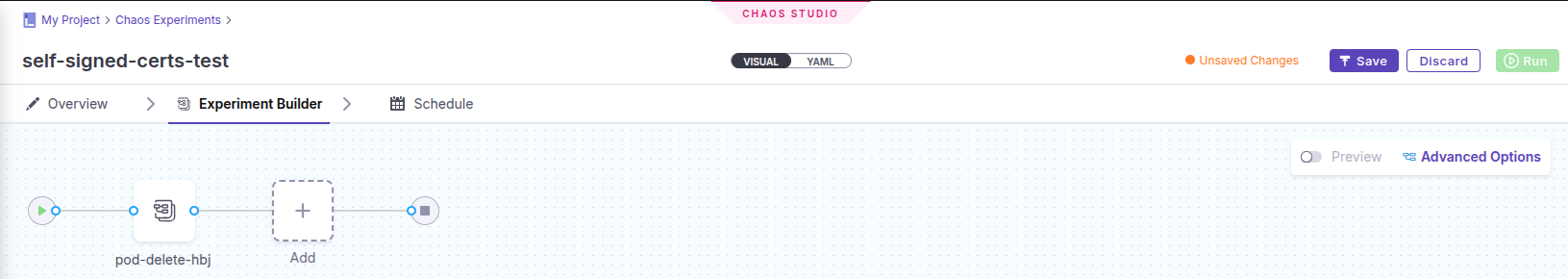

At this point you experiment should look like this:

Save your changes by clicking the Save button in the top-right corner of the screen.

5. Run a Chaos Experiment¶

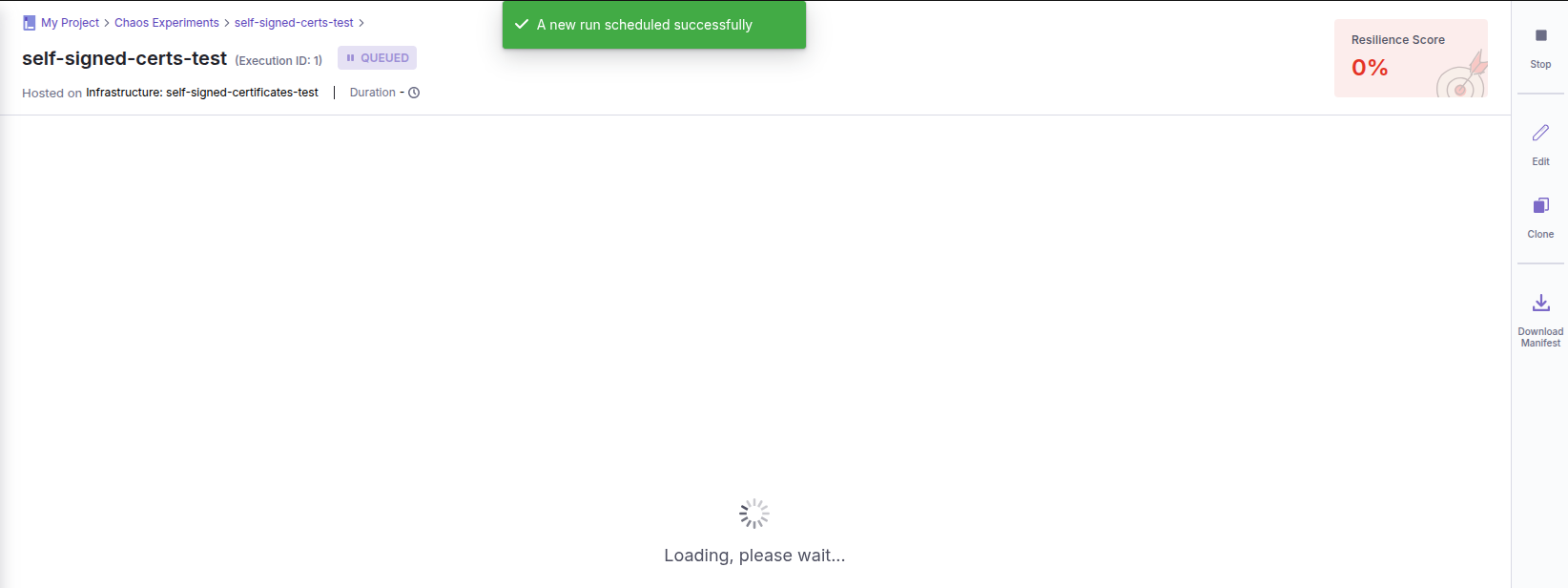

Click the Run button in the top-right corner of the screen to run the Chaos Experiment:

Running the experiment should take approximately 3 minutes.

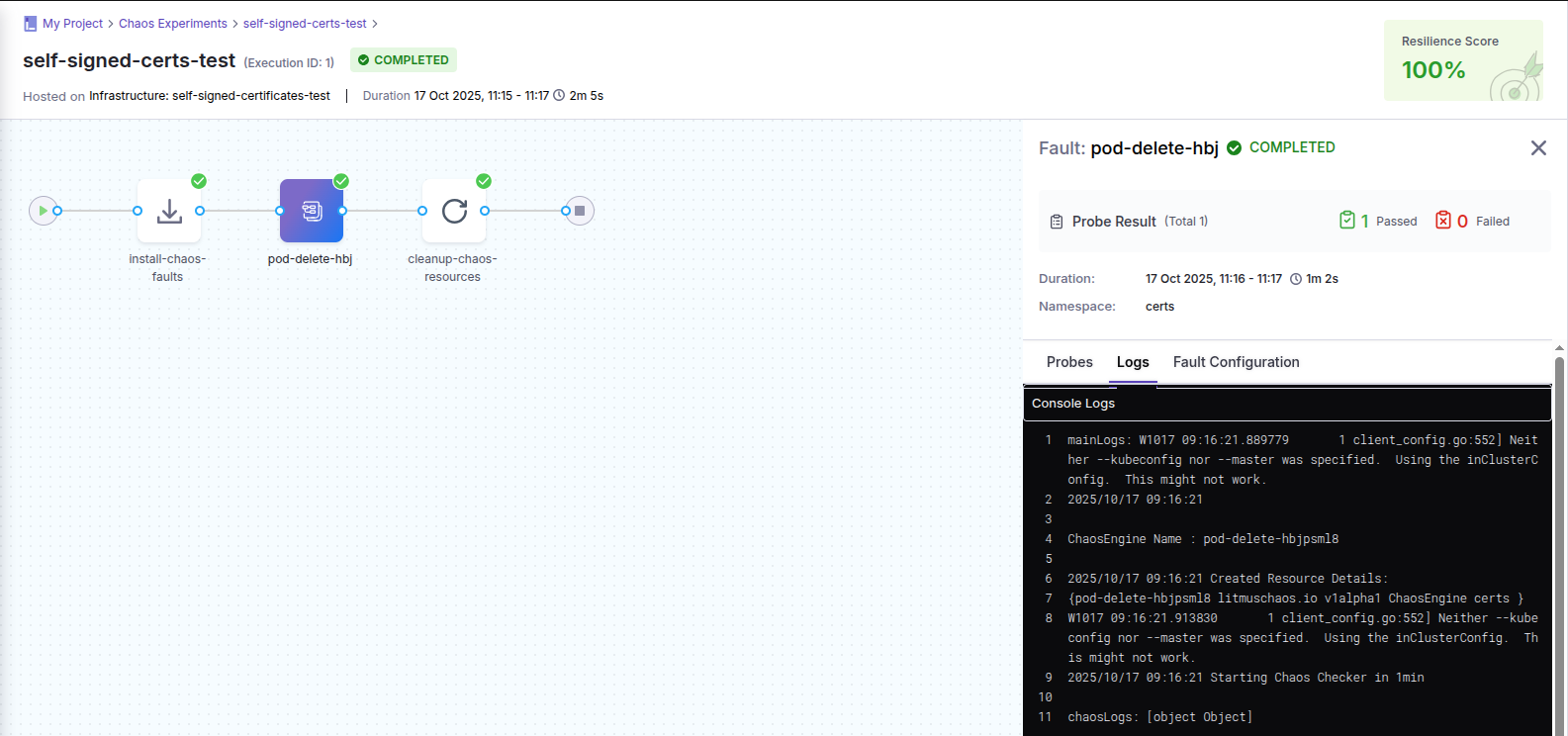

When the experiment state changes from RUNNING to COMPLETED the run is done and the result is presented:
